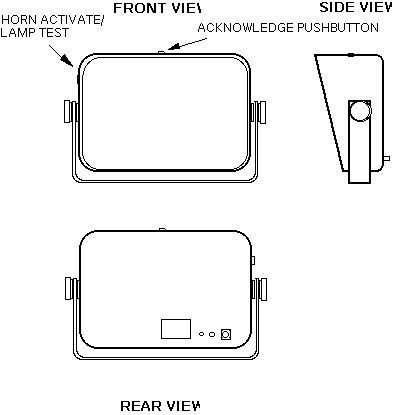

MOBILE RADIO-GRAPHIC DISPLAY

Radio Section:

• Frequency: 450-470 MHz
• Sensitivity:  0.5 uV
• Signal-to-Noise Ratio: 12 dB SINAD

Electronics:

• FSK Signal Decoder
• CMOS Integrated Circuit Logic
• Power Supply: 12 VDC, 1 amp from vehicle battery

Controls:

• Alarm Acknowledge Switch, Lamp Test Switch, Vehicle Horn Activate Switch, Audio Output

Custom Graphic Display:

• 1/4-inch polycarbonate display screen
• Alarm Lamps: Ultrabrite LEDs--"REC" LED indicates proper operation of ``in use"   supervision; ``INT" LED indicates presence of an interference signal.

Dimensions: 8" X 11" X 3-1/2", plus sunshield

Weight: 3.5 lbs.

RADIO TRANSMITTER

Frequency Range: 450-470 MHz

Power Output:  2 watts into 50 ohms

Signal Input: Current loop from encoder unit

 Indicator Lamps:

• Green LED, power
• Red LED, transmit

Controls: Test transmit switch

Power Supply: 12 VDC, 1 Amp. plug-in power supply (included)

Enclosure: 12" X 12" X 4"

ALARM ENCODER

Alarm Inputs:  8 inputs per basic encoder. Expandable in groups of 8 inputs to a maximum of 64 inputs. All inputs optically isolated.

Signal Output:  2-wire ``telephone line" current loop. Typical encoder to transmitter distances up to 3000 feet.

Indicator Lamps:

• Green LED, power
• Red LED, transmit

Controls:  Manual keying test switch, push button

Power Supply:  12 VDC, 1 amp provided from wall-mounted plug-in transformer (included).

Enclosure:  18-1/2" X 14-1/4" X 4-1/8"

Weight:  5 lbs.

Specifications and features subject to change without notice.
