WIDE AREA DURESS (WAD) SPECIFICATIONS

Rectangle

General System:

Operating  Frequency:  903-928 MHz

Transmission Method:  Spread spectrum (direct sequence)

Data Rate:  9600 Baud

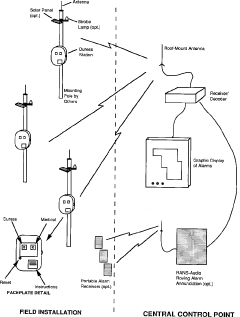

Duress Alarm Station:

Enclosure:  Heavy duty, NEMA 12 rated

Size:  12" W x 12" H x 4" D

Alarm Switches:

  • Heavy-duty, sealed oil-tight
  • Emergency-Red
  • Medical-Green

Alarm Reset Switch:  Pressing alarm switches in sequence resets alarm.

Transmitter Output:  1 watt, 50 ohm

Power Required:  12VDC from internal battery, 8 Amp. Hour (external power optional)

Antenna:  Fiberglass, Omni-directional, Directional (separately mounted)

Solar Panel: (optional)  8" W x 6" H x 1" D with mounting bracket (separately mounted)

Strobe Light: (optional)  5-1/4" diameter by 4-3/4" high with mounting bracket for pole mounting. Requires large internal batteries. Lens colors: red, blue, or amber.


Central Control Receiver/Decoder:

Enclosure:  Cabinet mount (rack mount optional)

Size:  19" W x 5.25" H x 13" D

Power Required:  120VAC (from wall-mounted UL-approved transformer)

Antenna:  Fiberglass, High Gain Omni-directional (separately mounted) (Antenna mast provided by installation contractor)

Antenna Cable:  Low Loss RG-8U cable assembly with Type N connectors

Relay Outputs: (optional)  1-Form C contact 24VDC/1 Amp. for each remote station

RANS-Voice Annunciation for Roving Personnel (optional)                                                        See the RANS-Voice brochure.

Graphic Display Annunciator Panel:

Enclosure:  Surface Wall-Mounted Cabinet (rack mount optional)

Size:

  • Cabinet: 20" W x 21" H x 4" D
  • Display: 10" W x 19" H

Alarm Lamps:   Solid State Light-Emitting Diodes (LED)

Lamp Colors:

  • Emergency-Red
  • Medical-Green
  • Trouble-Yellow

Control Switches:

  • Alarm Acknowledge, pushbutton
  • Alarm Reset, pushbutton
  • Lamp test, pushbutton

Audible Alarm:  Solid state sounding device
