SPECIAL PURPOSE MMP SPECIFICATIONS
Rectangle

Power: Furnished by UL approved wall plug-in AC transformer,  6-foot cable. Current consumption: 200 ma. (approx.)

Enclosure:

  • .060" aluminum, top cover screw removable, anodized clear.
  • .125" aluminum front panel, anodized black, with white silkscreen.

Dimensions:

  • 19" EIA rack mounting; one rack space.
  • 19"W X 1-3/4"H X 10"D

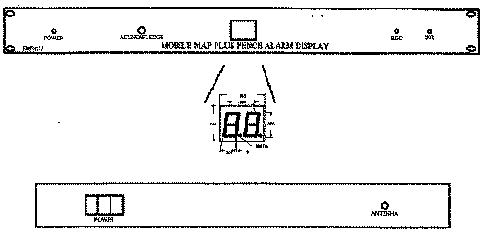

Front Panel:

  • 2-digit LED numeric digital display, .56" numerical height
  • Acknowledge pushbutton
  • Green POWER lamp
  • Yellow INT lamp
  • Red REC lamp
  • Audible alarm, internal behind panel

Rear Panel:

  • Power connection, 2 screw terminals
  • Antenna connection, BNC panel-mount connector

The above information is the best description of the unit based on the operation of the current Mobile Map Plus system. Actual operation is subject to change without notice based on final programming. All information contained in this document is copyright © CDT 1998, and is to be used only as information for our customers.
